FSR emitters are universally used & offer an economic heating solution.

They are characterised by their concave design which reduces heat absorbtion by the wiring space.

Elstein FSR panel heaters are ceramic infrared heaters, designed for operating temperatures up to 750°C.

Surface ratings of up to 64 kW/ m² can be installed.

FSR IR Panel HeatersBrowse our catalogues & add products of interest to your "enquiry list" or
contact us to discuss your requirements.

Elstein FSR:
Ceramic Infrared Panel Heater

Elstein FSR: Ceramic Infrared Panel Heater

High temperature ceramic radiator
250mm x 62.5mm, 150 - 1000W

Elstein FSR/2:
Ceramic Infrared Panel Heater

Elstein FSR/2: Ceramic Infrared Panel Heater

High temperature ceramic radiator
125mm x 62.5mm, 125 - 500W

Features of FSR series infrared panel heaters

FSR series heaters are made using a full-pour casting ceramic process and are characterised by their concave design. Due to the design of this type, there is a space between the heaters and mounting plate, which reduces the heat absorbed by the wiring space.

FSR panel heaters can be used universally and are suitable for assembling radiation areas with any geometry required. They are available in various designs and cover the power range from 60 W to 1000 W.

Our standard range consists of:

Elstein FSR:
Ceramic Infrared Panel Heater
Elstein FSR/2:
Ceramic Infrared Panel Heater
Dimensions 250mm x 62.5mm 125mm x 62.5mm
Power at 230V ac 150 - 1000W 125 - 500W
Weight 220g 125g
Surface Rating 16.0 - 64 kW/m²
Typical operating temperature 400 - 720°C
Maximum permissible temperature 750°C
Wavelength range 2 - 10 μm
Standard design specifications Operating voltage 230 V
Ceramic full-pour casting
Leads 85 mm
Elstein standard socket Mounting set
Optional Thermocouple Integrated thermocouple Type K (NiCr-Ni), TC leads 100 mm
Custom variations Special wattages
Special voltages
Extended leads
Leads with ring terminals

Temperature Range & Radiant Power Elstein FSR Emitter

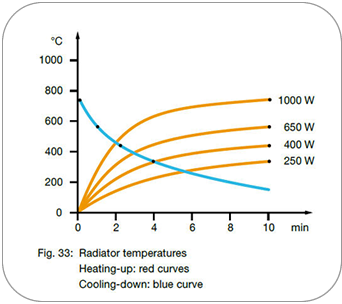

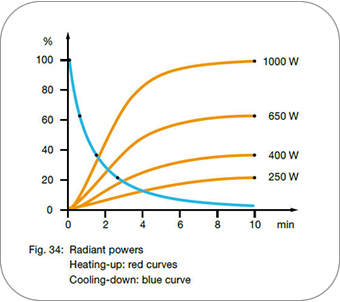

Radiant Temperatures - Elstein FSR Elstein FSR - Radiant Power

Elstein FSR Infrared Emitters: Dimensions

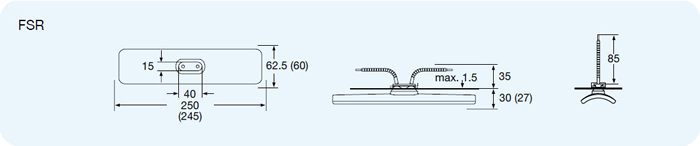

IR Emitters Elstein FSR Technical Drawing

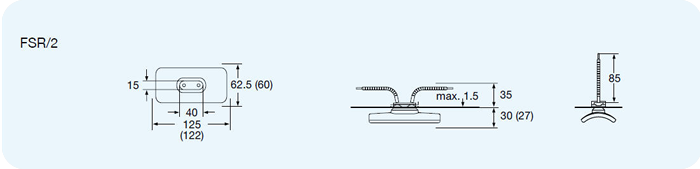

IR Emitters Elstein FSR/2 Technical Drawing

The power can be controlled using thermocouple radiators together with temperature controllers, thyristor switching units and other accessories. IR radiation areas can be assembled using reflectors, construction elements as well as mounting sheets.

The national safety regulations must be complied with for the respective application, for example, the IEC or EN standard 60519-1, Safety in electrical heating installations.

Typical industrial applications for ceramic infrared heaters

Infrared heat is an excellent non-contact heat source and is thus used in applications involving delicate surfaces, for pre-heating, softening, curing and drying.

Thermoforming of boat hulls
Drying paints and curing resins
Heating of plastic tubes
Heating of bottle bottoms
3D-Heating for lamination
Glass tempering
