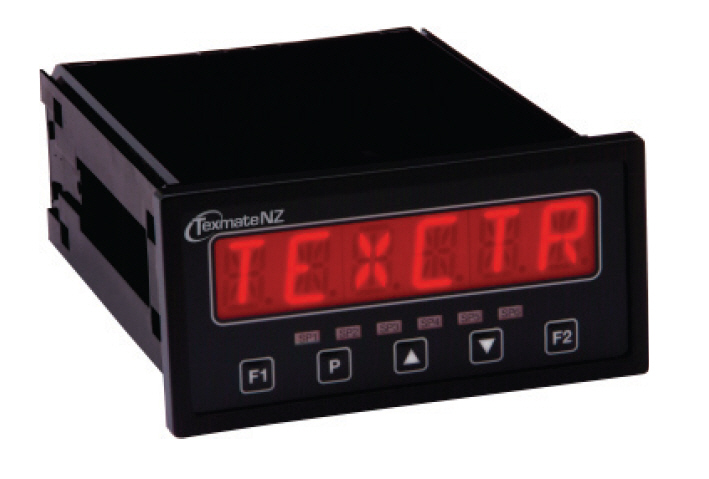

Define Instruments TEX-CTR10: Counter, Rate indicator
Stock Code:
SKU: product options
This counter is ideal for indicating totalisation and monitoring rates.
- 5 buttons
- 13mm LED display, 6 digits
- IP65 dust and splash-proof
- Panel mount case - (H x W x D)
48 x 96 x 119.5mm
The TEX - CTR10 indicator is the ideal solution for a variety of counting and rate application requirements.
This meter has been designed for ease of use, with intuitive, scrolling text prompts that guide you step-by-step through the setup process.
The front panel includes a 6-digit LED isplay and five front-panel buttons, for simple operator interface. One of the five buttons is user-programmable, so you can customise it as a shortcut to your most frequently used feature.
The TEX - CTR10 is available as an indicator. For more sophisticated applications requiring outputs and/or batching functionality, we recommend the PRO - CTR series.
| Input Signal | 0-24V DC, 0-30V AC |
| Sensor types | NPN, PNP, TTL, namur, tacho, pushbutton |
| Noise filtering | 0.2, 2, 20kHz or Off |
| Excitation | 24V DC (50mA max) |
Counter | |
| Input frequency | 100kHz max |
| Pulse width | Minimum pulse width must exceed 5?s |
| Sampling rate | 10msec |
| Rate | |
| Input frequency | 10kHz max (100kHz in high-speed mode) |
| Pulse width | Minimum pulse width must exceed 5?s |
| Sampling rate | 100msec |
| Resolution | 0.01Hz (1Hz in highspeed mode) |
| Accuracy | 0.005% |
| Temp drift | Typically 2ppm/°C |
