Feller Visual FECON: Data Management and Control Software
Stock Code:
SKU: Feller-visual-fecon

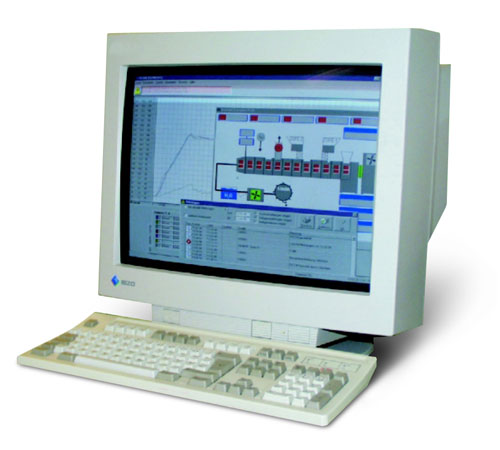

Visual FECON - the optimised process visualisation for the controllers of FELLER ENGINEERING is established in the market since many years. The system grows permanently. The operation is still as comfortabe and intuitiv as before. All over the world the process values from controllers and control systems are displayed and stored reliable.

Visual FECON - the optimised process visualisation for the controllers of FELLER ENGINEERING is established in the market since many years. The system grows permanently. The operation is still as comfortabe and intuitiv as before. All over the world the process values from controllers and control systems are displayed and stored reliable.

The purposes of users are really different:

  • Controlling of complete extrusion lines.
  • Acquisition of data from automovitve producers referring to ISO-certification.
  • Operation and supervision of large extended pipe systems in the chemical industry.
  • General failure statistic by long term acquisition from all devices of FELLER ENGINEERING via default interface RS485.

The program is directly after quick installation ready to use. There are no specialists required. Standard knowledge of Windows is sufficient. ®

After comfortable installation from CD-ROM and connection to the controllers by 2-wire cable, the program is able to verify and indicate the measured values at the PC. Visual FECON recognizes the linked devices by the autosetup function and adjusts itself to the special tasks.

Visual FECON is completely developed by FELLER ENGINEERING. Customer specific modifications may be performed easily and directly. A single call to the phone assistance group will provide support for Visual FECON software and the connected hardware controllers. Updates are offered free of charge. A version for demonstration is available from the homepage www.fellereng.de.

The modular structure allows customized extensions depending on functional groups and the number of connected units to meet the actual requirements.

  • Permanent data recording of all process related values to the harddisk (cycle time is 1 s).
  • Evaluation and display of the recorded data showing historical trends (line chart). A single trend screen will show up to 16 free selectable trends simultaneously. 30 different trends may be preselected.
  • Several statistic functions (minimal, maximal and deviation) are available for a selectable time frame.
  • Long term histogram recordings of several days can be displayed on a single screen.
  • Comfortable management of error including export function
  • Complete, text operated parameter setting all connected units includes recipe management, print and export functions (EXCEL, dBASE, ACCESS, CSV...)
  • Individual total overview of the zones by selectable faceplates. These present the important indicators of single zones.
  • Implementation of scanned or externally designed drawings for process pictures. Visual FECON will present the measured values “live” by overlays at the referring location.
  • Interlock function in 4 levels by user names and password protection.
  • Specially for the hotrunner purpose designed modul “ToolDoctor”. This option is a diagnosis program, that recognizes e.g. mixed sensor wiring after mold change, defective heaters and other connection-failures. A consequent protocol for the tool finishes the task.
  • Acoustic alarm report
  • Links to supervisory systems are available by TCP/IP via network.
  • Alarm reports may be transmitted with an external GSM modem via SMS.

System requirements

PC with installed Windows operation system and printer, graphic resolution min. 800x600 pxs. ®
