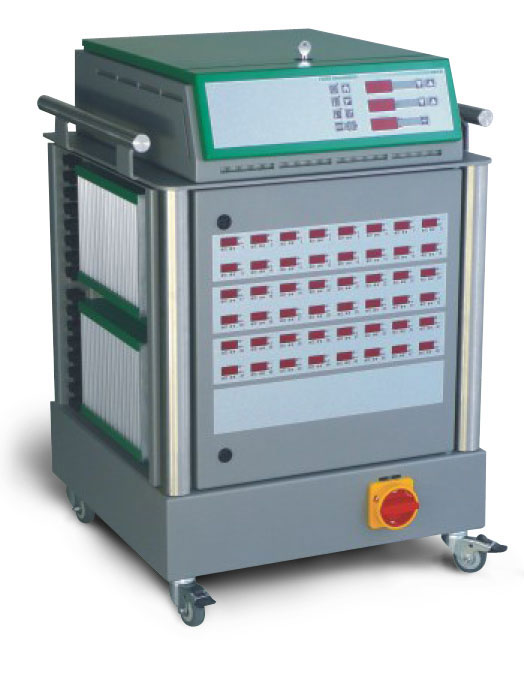

Feller MCS: Multi Channel Temperature Controller
Stock Code:
SKU: product options

Based on several years of close co-operation with the plastics industry the established series MCS introduces new features in a new design at an attractive price performance ratio as ever before. The more compact hotrunner controllers combine technology state-of-the-art with high level operation comfort and increased service capability. A three-side illuminated LED-strip signalises three different operation states widely visible.

Housing / design

  • Steel housing IP20 by 2 variations
  • Construction for different heights
  • Ambient temperature max. 60°C / 140°F
  • Designed for 2 to 128 control- zones, 256 or more zones with operation monitor MCScontrol

Performance and features

  • Alarm-outputs (isolated) via multi-pin plug
  • Data interface RS485, CAN-Bus, (optional Bluetooth, Ethernet, USB, RS232)
  • Parallel heater-current supervision
  • Power per zone 230 VAC / 16 A, 80% SF
  • NSS (fused sensor-inputs against net-voltage > 10 V)
  • Power supply via CEE-connector, cable length 3 m
  • Safety power OFF, main relay 400 V/50/60Hz
  • Output fuses 16 A ff
  • Digital control inputs 24 VDC
  • Multi-pin connectors, according to customer's demand or standard sensor and heater separated

Control electronics

  • Temperature detection each 250 ms up to 128 zones
  • Alarms for Low-temperature, High-temperature, broken sensor, shorted sensor, changed polarity, system fault,current deviation, output rate supervision
  • Individual alarm delay
  • Internal resolution 1/10 K
  • Outputs pulsed or phase angle controlled, automatic or manually selectable
  • Diagnosis program to detect external wiring mistakes
  • Leakage current supervision with intelligent dry-out routine
  • Controlled by micro-processor for up to 128 control loops in one unit
  • Parameter level locked by password
  • Control range up to 700°C / 999°F
  • Robust self optimising control
  • Self tuning to enable
  • Soft-start-function with automatic dryout at 100°C / 212°F, if required
  • Setpoint programs, 6 individual including all para- meters
  • Manual mode in case of broken sensor, manually or automatic, following mean values or reference-zones
  • Thermocouple inputs Fe-CuNi; in option Pt100/2L
  • Groups for multiple operation
  • Boost-function to enable
  • Monitor zones for additional temperature supervision
  • Selection °C / °F
  • Supervision of output rate against nominal values
  • Combined heating
  • Power supervision

Operation

  • Easy operation, three variations of display available, foil-keys, multi-line LC-display with data wheel or touch screen
  • Separate indication with comparison setpoint/ actual value for operation
  • Selection of up to 6 individual groups of zones
  • Single indicators for all zones including control mode and group-selection, selectable for setpoints, actual values, deviations, output rates and current values
  • Illuminated LED- strip for 3 different states
  • Failure protocol via display
  • Help menu via display
