Elstein SHTS Ceramic Infrared Radiators

Ceramic IR, infrared heaters

Elstein SHTS super high temperature radiators were developed to increase the previous maximum possible surface rating of ceramic panel radiators from 64 kW/m² to 77 kW/m².

The four designs cover the power range from 300 W to 1200 W and have customary market dimensions.

Existing IR equipments can be retrofitted with Elstein SHTS series radiators.

Elstein SHTS: Ceramic Panel HeaterBrowse our catalogues & add products of interest to your "enquiry list" or
contact us to discuss your requirements.

Elstein SHTS-1:
Infrared Panel Heater

Elstein SHTS-1: Infrared Panel Heater

  • High temperature ceramic radiator (250mm x 62.5mm)
  • 1200W

Elstein SHTS-2:
Infrared Panel Heater

Elstein SHTS-2: Infrared Panel Heater

  • High temperature ceramic radiator (125mm x 62.5mm)
  • 600W

Elstein SHTS-4:
Infrared Panel Heater

Elstein SHTS-4: Infrared Panel Heater

  • High temperature ceramic radiator (62.5 x 62.5mm)
  • 300W

Elstein SHTS:
Infrared Panel Heater

Elstein SHTS-4: Infrared Panel Heater

  • High temperature ceramic radiator (62.5 x 62.5mm)
  • 300W

Features of Elstein SHTS: Ceramic Panel Heaters

The SHTS radiators, produced using the hollow casting ceramic process, are filled with thermal insulation material and have a special black glaze and a goldplated back. At an operating temperature of 900 °C, over 75 % of the electrical energy supplied is transferred to the material to be heated as medium to longwave IR radiation.

SHTS series radiators are therefore particularly suitable for use in plant construction, in which special solutions have to be drawn up for the customer's specific needs and for applications requiring high outputs.



Selection Guide Elstein SHTS Panel Heaters

  Elstein SHTS-1: Infrared Panel Heater Elstein SHTS-2: Infrared Panel Heater Elstein SHTS-4: Infrared Panel Heater Elstein SHTS: Infrared Panel Heater
Power at 230V ac 1200W 1200W 600W 300W
Weight 220g 220g 125g 75g
Surface Rating 76.8 kW/m²
Typical operating temperature 860 °C
Maximum permissible temperature 900°C
Wavelength range 2 - 10 μm
Standard design specifications Operating voltage 230 V
Ceramic hollow casting
Integrated thermal insulation
Leads 85 mm
Elstein standard socket
Mounting set
Special black glaze
Gold-plated back
Thermocouple Radiators Designation T-SHTS, T-SHTS/1,
T-SHTS/2, T-SHTS/4
Integrated thermocouple
Type K (NiCr-Ni)
TC leads 100 mm
Custom variations Special wattages
Special voltages

Elstein SHTS: Ceramic Panel Heaters: Dimensions

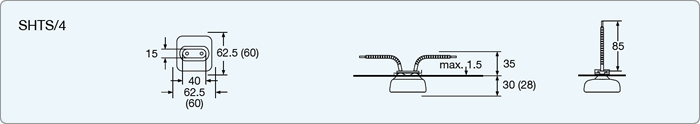

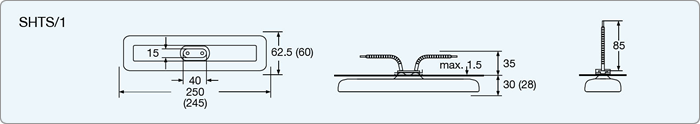

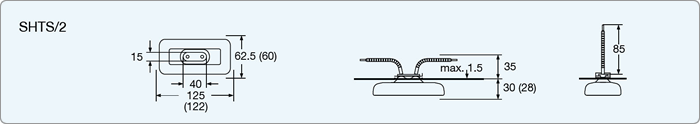

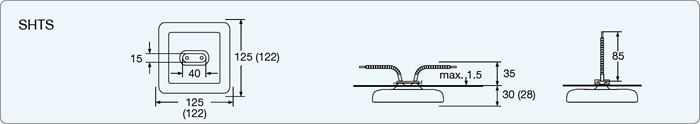

Elstein SHTS/1 Elstein SHTS/2 Dimensions Elstein SHTS/4 DimensionsElstein SHTS Dimensions

Temperature and Radiant Power

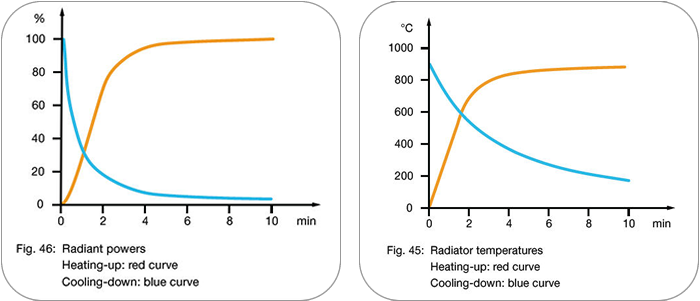

Radiant Power - Elstein SHTS Range

The power can be controlled using thermocouple radiators together with TRD 1 temperature controllers, TSE thyristor switching units and other accessories.

IR radiation areas can be assembled using REO reflectors, REF construction sets, EBF and EBI construction elements as well as MBO mounting sheets.

The national safety regulations must be complied with for the respective application, for example,

  • IEC or EN standard 60519-1,

  • Safety in electrical heating installations

Our instructions for mounting, operation and safety must be observed.
