Thermon USZ: T/C type K, Pt100 Sensor with Insert
Stock Code:
SKU: product options

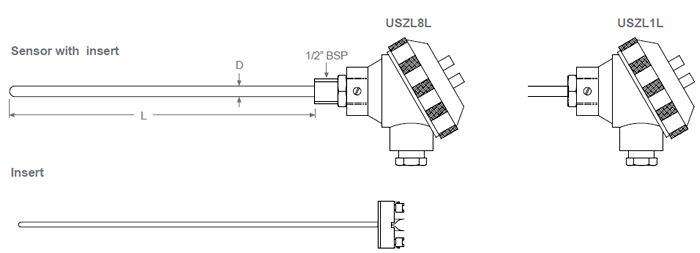

Thermocouple type K & Pt100 sensors with different options for pockets such as

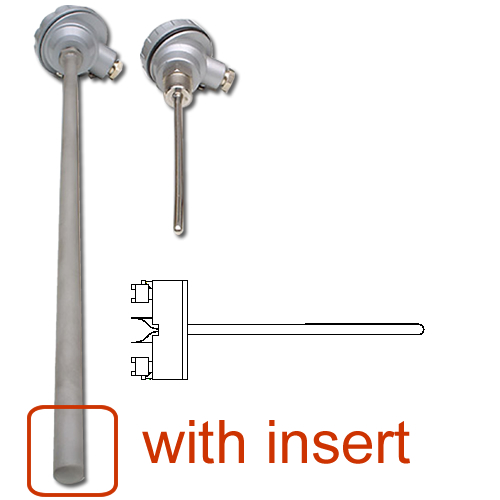

- Pocket with Inserts
- Pocket with Spring-Loaded Insert
- Insert Only
- Spring-Loaded Insert Only
- available with standard head type KN
Please choose from our standard range below or specify your custom sensor requirements here.
Notes:
*dimensions in mmTemperature in industry has a direct impact on the quality of the product being manufacture and the energy used by the process.
Resistive thermal devices (RTDs such as Pt100s) are temperature sensors that exploit the predictable change in electrical resistance of some materials with changing temperature.
Thermocouples (T/C type J, K, T….) are temperature sensors that are made of 2 dissimilar metals and produce a millivolt signal in proportion to temperature.

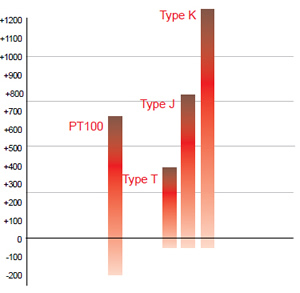

Temperature range of sensors | Operating temperature limit of sensor cables
|
Accuracy of Thermocouples
Accuracy of Pt100 sensors
Accuracy class | 2/ A |
max. Temperature | 400/900°C |
Cable Length | (specify) |
Cable | (specify) |
Remarks | welded fitting 1/2" BSP |
