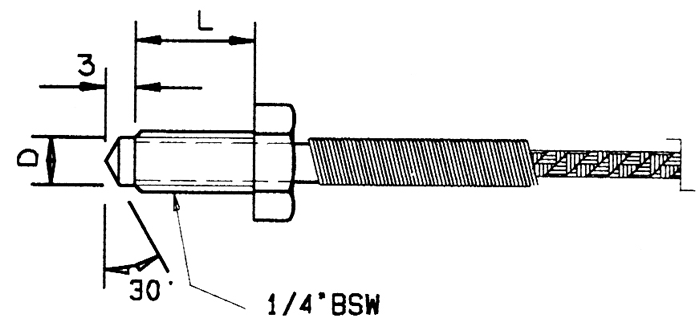

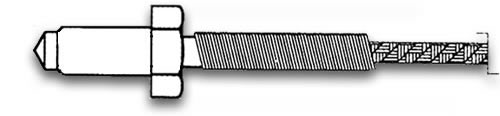

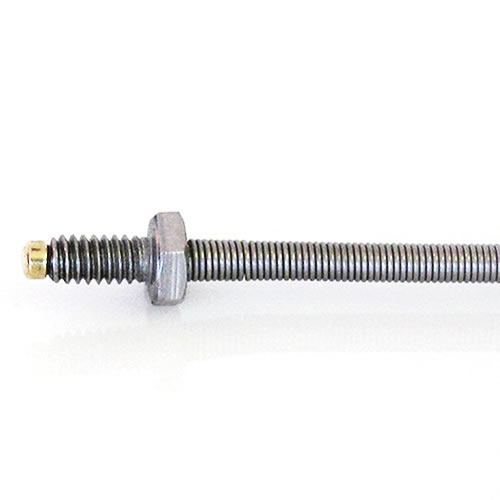

Diameter 4.8mm, length 12mm, cable length 15000mm, type J thermocouple, "other" mounting options. Thermocouples with swivel stud fitting are widely used on the barrel of injection moulding machines and extruders.
1/4" BSW fitting.
For different dimensions, threads, cable lengths or sensor types refer to the customisable sensor section.
Notes:
Application example: Heating Elements + Control Components on Plastic Blow Moulding Machines
![]() |
All parts in the control loop are essential and need to be selected, installed and set up correctly. We supply both replacement components as well as engineered turnkey solutions to match your specific requirements.
|
For more information and to get a quote for the components illustrated in this control loop, please follow the links on top of the product images.
