Flanged Immersion Heater, increased safety, Ex-e

Stock Code:

SKU: custom-flange-heater

Ex-e certified Flanged Heater

Immersion heaters for medium oil heating in hazardous areas

ATEX II 2 G - EEx de II C T1 - T6 certified for ambient temperature
-50°C +40°C (+60°C with a longer stand off)
Stand off stainless steel or powder coated carbon steel terminal enclosure
Flanges to suit client application
High quality alloy sheathed elements
Watts density to suit process
Feasible output up to 1.5MW
Certified to Ex-e requirements

Enquire
Description
Gallery
Downloads
Related Products
Tags

Customer details

Company: *

Name: *

Telephone: *

Email: *

Message:

Design Specifications

Please specify your requirements

Upload drawing:

Please indicate inlet and outlet positions on drawing. Provide as much information as possible in the forms sections below to speed-up quotation & manufacturing processes.

General

Medium to be heated:

Maximum operating temp. (°C):

Maximum operating pressure (BAR):

Flowrate of medium (m³/hr):

Baffle Plate Quantity:

Baffle plate diameter (mm):

Baffle plate cut height relative to diameter (mm):

Tube Shell

Tube shell required?

yes

Inlet diameter (mm):

If a tube shell is required, please specify.

Outlet diameter (mm):

If a tube shell is required, please specify.

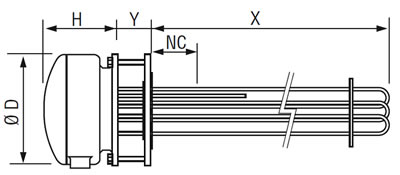

Element specifications

Immersion Length "L" (mm):

Quantity of elements:

Diameter of elements (mm):

Minimum internal diameter of tube "D" (mm):

Length btw flange & terminal housing "S" (mm):

Flange specification

Flange diameter (mm):

Flange thickness (mm):

Flange material:

Number of bolt holes:

Bolt hole diameter (mm):

Bolt hole P.C.D. (mm):

Terminal Housing

Stand-off length from flange:

Terminal housing material:

Terminal housing width (mm):

Terminal housing height (mm):

Terminal housing depth (mm):

EEX/ ATEX certification req.

yes

EEX/ ATEX rating specification (if req.):

Number of cable glands:

Size of cable glands:

Electrical

Supply voltage (V):

Phase:

Number of heated zones:

Power rating per zone (KW):

Number of temperature probes:

Type of temperature probes:

Pt 100

Type K

Other

Leave this field blank:

Note : Also standardized ranges with Watts density :

1.2 W/sq.cm for heavy oils (range from 4,5 up to 120 kW)
2.3 W/sq.cm for medium oils (range from 6 up to 180 kW)
3.9 W/sq.cm for light oils, etylene glycol, ... (range from 12 up to 360 kW)

On request:

Standard design on 14” and 16” flanges (output up to 297 kW)
300 to 2500 Ib ANSI flanges
Stainless steel terminal enclosure

Options :

Safety thermostat with automatic or manual reset
Pt 100 safety sensor
Thermocouple for skin temperature safety

Engineered to order gallery: Flange Heaters

Heat Exchanger
to Heat up Slurry

Flanged heaters/
Immersion Heaters

Flanged Heater for petrochemical process

Flanged heaters
for petrochemical process

Flanged Heater:
114 KW for heating eluate

Mining Slurry
Half-round Heater Bundle

Thermic Oil
Heater Exchanger

Elution
Heating Systems

Flanged Immersion Heaters: Custom specifications
