Coil Heater, Straight Component: WRP/Maxi/ 4.6 x 8.6

Coil Heater, Straight Component: WRP/Maxi/ 4.6 x 8.6 cross section, bendable

Stock Code:

SKU: product options

Straight WRP heaters can be bent to fit into a groove (8.6mm deep x 4.6mm wide), machined into a metal block. They are very suitable to heat up metal blocks (e.g. sealing plates, sealing bars...) due to high heating power, slim construction, small bending radius and good durability against mechanical damage.

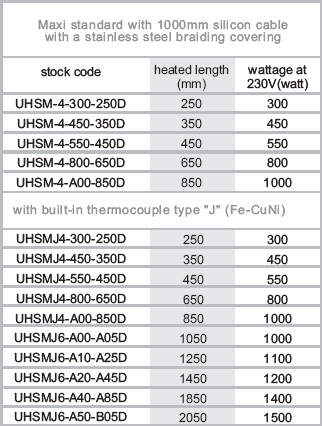

The optional built in thermocouple permits convenient temperature measurement.

Enquire
Description
Technical Data
PDF's
Related Products
Tags

Coil heaters are widely used in the plastic industry, the packaging industry, the textile industry and in the die-casting industry. Coil heaters can be supplied with built-in thermocouple for applications where there is insufficient space to mount a seperate temperature sensor.
Thez can be supplied in straight sticks for bending and insortion into machined grooves on the tool. Alternatively, the heaters are coiled by the unitemp factory to customers` specification.
Coil heaters can be supplied with reflection tube or cast-in for added robustness and better heat transfer


Download unitemp brochure 2009 / 2010	Click here for Hotset brochure download	Click here for Installation Instructions
