Thermon KSX: Self-Regulating Heating Cable, <121°C
Thermon KSX: Self-Regulating Heating Cable, <121°C
Stock Code:
SKU: product options
  • A medium temperature self-regulating heat tracing cable.
  • Ideal for freeze protection or process temperature maintenance
    where medium temperature exposure capability is required
  • Suitable for applications where steam clean exposure capability is not a requirement
  • Operating Voltage: 230 VAC
  • Maximum operating temperature: 121°C
  • Withstands continuous flammability testing according to IEC 60332-1: 1993
  • T-rating: T3
  • Certifications/ Approval:
    Thermon KSX - certifications

For a detailled quotation, please specify required W/m & quantity in metres, below.

Custom Product Options
Pick your custom options from the list below and click "Add To List".

Construction

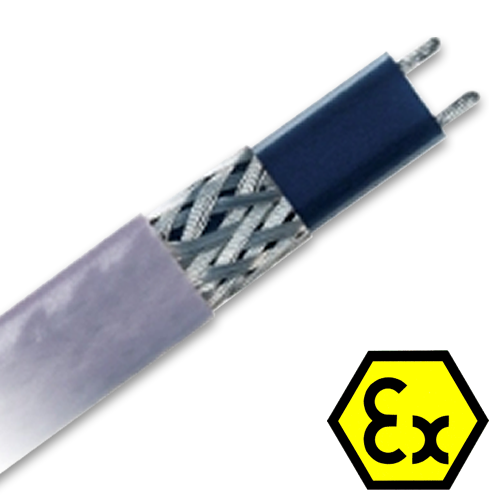

Thermon KSX: Self-regulating heating cable, product specifications

  1. Nickel-plated copper bus wires (1.3 mm²)
  2. Semiconductive heating matrix and fluoropolymer
    dielectric insulation
  3. Tinned copper braid
  4. Fluoropolymer overjacket provides additional protection
    for cable and braid where exposure to chemicals or
    corrosives is expected.

Applications for Thermon KSX Self-Regulating Heating Cable

High performance KSX self-regulating heating cables are designed specifically for high heat loss freeze protection applications or process temperature maintenance where steam cleaning is not required.

The heat output of KSX cable varies in response to the surrounding temperature by reducing its thermal output with increasing temperature.

KSX cables are certified for use in ordinary (nonclassified) areas and in potentially explosive atmospheres in accordance with the ATEX Directive and the IEC Ex Scheme..

CE certificate2 G Ex e II T3 to T6, II 2 D Ex tD A21 IP66/IP67
T200°C to T85°C FM 07ATEX0027
International Electrotechnical CommissionInternational Electrotechnical Commission
IEC Certification Scheme for Explosive Atmospheres FMG 06.0009
Factory Mutual ResearchFactory Mutual Research
Ordinary and Hazardous (Classified) Locations

Ratings

  • Available Watt densities: 15, 31, 48, 64 W/m at 10°C
  • Nominal supply voltage¹: 230 Vac
  • Maximum maintenance or exposure temperature:
    Continuous power-on: 121°C
  • Minimum installation temperature: -60°C
  • Minimum bend radius
    @ -15°C: 10 mm
    @ -60°C: 32 mm
  • T-rating²
    Based on stabilized design³: T3 to T6

Notes:

¹Cable may be energised at other voltages; contact us for design assistance.
²Thermon heating cables are approved for the listed T-ratings using the stabilised design method. This enables the cable to operate in hazardous areas without limiting thermostats. The T-rating may be determined using CompuTrace® Electric Heat Tracing Design Software or contact us for design assistance.
³Information on additional accessories to complete a heater circuit installation and to comply with approval requirements can be found in the "Self-Regulating Cables Systems Accessories" product specification sheet (Form TEP0010U).

Power Output Curves

The power outputs shown apply to overjacketed cable installed on insulated metallic pipe at the service voltage stated below.

Product Type
230 Vac Nominal
Power Output at 10°C
W/m
KSX 5-215
KSX 10-231
KSX 15-248
KSX 20-264
Thermon KSX: Self-Regulating Heating Cable, Power Output at 230 Vac

Circuit Breaker Sizing and Type

Maximum circuit lengths for various circuit breaker amperages are shown below. Circuit breaker sizing and earth-fault protection should be based on applicable local codes. For information on design and performance on other voltages, contact us. Earth-fault protection of equipment should be provided for each branch circuit supplying electric heating equipment.

Type B Circuit Breakers
230 Vac Service VoltageMax. Circuit Length³ vs. Breaker Size (Metres)
Product TypeStart-Up Temperature²
°C		16 A25 A32 A
KSX 5-210
0
-20
-40		114
114
112
94		167
167
167
160		167
167
167
167
KSX 10-210
0
-20
-40		76
76
73
64		117
117
117
106		117
117
117
117
KSX 15-210
0
-20
-40		47
45
41
37		77
74
67
60		94
94
89
79
KSX 20-210
0
-20
-40		34
33
30
27		55
52
48
43		73
69
62
57

Type C Circuit Breakers

230 Vac Service VoltageMax. Circuit Length³ vs. Breaker Size (Metres)
Product TypeStart-Up Temperature²
°C		16 A25 A32 A
KSX 5-210
0
-20
-40		114
114
113
95		167
167
167
163		167
167
167
167
KSX 10-210
0
-20
-40		76
76
75
66		117
117
117
109		117
117
117
117
KSX 15-210
0
-20
-40		47
47
47
42		77
77
76
69		94
94
94
91
KSX 20-210
0
-20
-40		39
39
36
33		64
64
59
53		81
81
78
70

Thermon
Electric Heat Tracing
Installation Procedures

Thermon PETK:
Power & End Termination Kits
for division classifications - Installation

Electric Heat Tracing: Installation ProceduresThermon PETK: Installation Procedures video

Thermon SCTK:
Splice Connection Termination Kits
Installation Procedures

Thermon Terminator DE-B:
Heat Tracing Termination
Beacon Installation Procedures

Thermon SCTK: Splice Connection Termination Kits - videoTerminator DE-B Beacon Installation Procedures

Thermon Terminator DP:
Heat Tracing Termination Kit
Installation Procedures

Thermon Terminator DS/ DE:
In-Line Splice/ End Termination Kit
Installation Procedure

Thermon Terminator DP: Installtion Procedure, video

Thermon Terminator DS/ DE Installation Procedures

Zone Classification:
Thermon PETK Power & End Termination Kits
Installation video

Zone Classification:
Thermon SCTK Splice Connection Termination Kits
Installation video
Thermon PETK Power Connection & end termination kit - installation videoThermon SCTK (zone classification) - Installation Video
