Thermon FLX: Self-Regulating Heating Cable, up to 65°C

Stock Code:

SKU: product options

A low temperature self-regulating heat tracing cable.
Ideal for freeze protection for a variety of refrigeration and freezer applications.
FLX cables can be cut to length and are available in 3 power outputs:
5-FLX-2: 16
10-FLX-2: 33 " and
15-FLX-2: 49 watts per meter [power output at 10°C]
With braiding only for added safety
Operating Voltage: 240 VAC
Maximum operating temperature: 65°C
The narrow profile of FLX cables provide the flexibility required for freezer door applications.
Certifications/ Approval:

For a detailled quotation, please specify required W/m, optional extras & quantity in metres, below.

Enquire
Description
Technical Data
Downloads
Accessories
Related Products
Tags

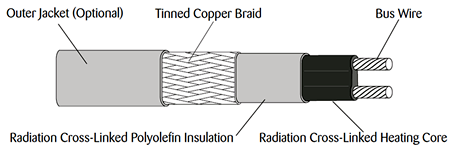

Construction

Nominal outside dimension:
Thermon FLX: Heat tracing cables

Note: Dimensions relate to the outer jacket option on the cable. Subtract 1 mm for braided only cables

Application: Freeze protection

FLX self regulating heating cables are designed to provide freeze protection for a variety of refrigeration and freezer applications.

These cut to length heater cables are available in power outputs of 16, 33 and 49 watts per meter.

Operating voltage is 240 VAC.

The narrow profile of FLX cables provide the flexibility required for freezer door applications.

Rugged and reliable

FLX self-regulating cables are protected by a tinned copper braid to provide grounding and additional mechanical protection for the cable. An optional outer jacket is available if additional mechanical protection is required.

Heat tracing users expect quality products and services from a reputable manufacturer. Thermon exceeds these expectations by operating under the ISO 9001 standard for quality.

Easy to design

FLX are self regulating, polyolefin insulated cables which vary output in relation to temperature. FLX cables are used primarily for freeze protection of freezer door frames, condensate drains and general freeze protection. FLX’s electrical configuration lends itself to field fabrication of each heat tracing circuit. Field dimensions of the erected piping are not required.

Easy to install

Kits for power connection, end termination and splicing are designed for quick and easy installation.

Bus wire: Nickel-plated copper
Metallic braid: tinned copper
Outer jacket: -OJ, polyolefin (optional)
Minimum bend radius @ -15°C: 10 mm
Supply voltage: 240 Vac
Circuit protection: 30 mA ground-fault protection required
Maximum continuous exposure temperature: Power-on 65°C; Power-off 85°C

Circuit breaker sizing & type

240 VAC service voltage		Max. circuit length vs. breaker size
Catalog Number	Start-Up Temp. °C	20A	30A	40A
5-FLX-2	-18 \| 10	119.8 \| 146.0	179.8 \| 182.6	179.8 \| 182.6
10-FLX-2	-18 \| 10	68.6 \| 85.3	103.0 \| 121.6	121.6 \| 121.6
15-FLX-2	-40 \| 10	43 \| 72	67 \| 114	95 \| 131

Thermon Electric Heat Tracing: Installation Guide 374 KB	Thermon Heat Tracing Specialists: Company Overview 1.95MB	Thermon FLX: Freeze Protection - installation 227KB
Thermon: Heat Tracing for Commercial Applications 463KB	Thermon FLX: Heating Cable for Refrigeration 347KB	Thermon SX-TERM-1 BC: Termination kit - installation 217 KB
Heat Tracing Systems: Design Software by Thermon 11.46 MB (zip)	Thermon Products & Accessories: Info Guide 1.37MB	Thermon Electric Heat Tracing: Maintenance Guide 243 KB
Thermon Heat Tracing: Electrical Safety Precautions 1.21MB	Thermon Heat Tracing Cables: Sample Specifications 116KB
