Thermon CCH: Self-Regulating Crankcase Heater
Thermon CCH: Self-Regulating Crankcase Heater
Stock Code:
SKU: product options

Helps extend compressor life by keeping oil at safe operating temperature.
  • Helps prevent compressor burn outs.
  • Fits compressors up to 5hp with up to 2.3 litres of oil.
  • Flexible to -51°C
  • No Thermostat required
  • Easy to install.
  • Can be crossed or overlapped.

240V, Power Output at 10° C, girth (wraparound dimension) up to 2m.

Special lengths can be manufactured upon request.

All electric heat tracing requires an earth leakage device fitted to power source as per AS/NZS3000:2007

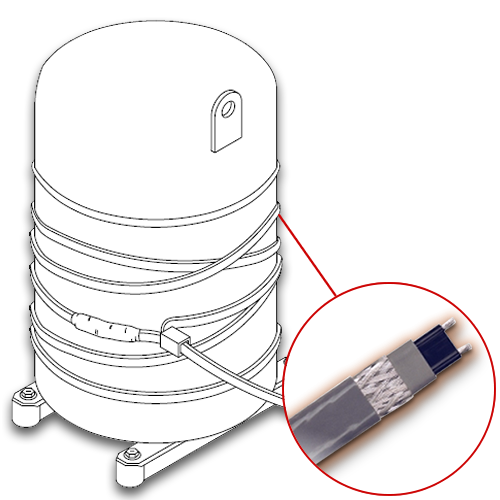

Construction of Thermon's CCH - self-regulating crankcase heaters

  1. Self regulating SX cable
  2. 3 core flex standard 1m length

Installation Instructions

Wrap CCH around casing as many times as possible. Can be overlapped without damage to increase coverage.

Thermon CCH crancase heater - installation instructions part 1

Secondly:

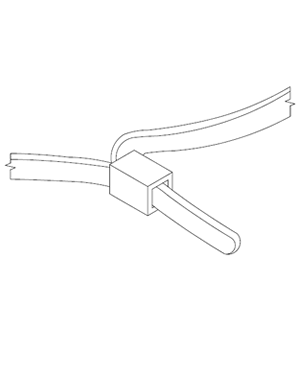

Feed plastic strip into the locking slot in buckle.

Thermon CCH crancase heater - installation instructions part 2

Thirdly: Tighten cable to secure CCH to the crankcase.
Wrap with FT-1H tape for extra surface contact.

Thermon CCH crancase heater - installation instructions part 3

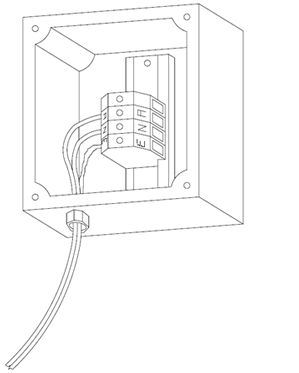

Lastly: Connect CCH to power. A 240 Volt supply with 30mA earth leakage protection is mandatory

Thermon CCH crancase heater - installation instructions part 4
