Thermon TC-Ambient: Thermostat
Stock Code:
SKU: product options
  • Ambient sensing control of electric heat tracing circuits for freeze protection of piping and vessels.
  • Can be used to control a heating circuit or as pilot control of a contactor switching multiple heat tracing circuits.
  • Indicating lamps for power-on and heater-on (transparent cover)
  • Rugged nonmetallic enclosure (IP65)
  • Certifications/ Approval:
    Thermon TC Ambient: Certifications

Applications for Thermon TC Ambient Thermostat

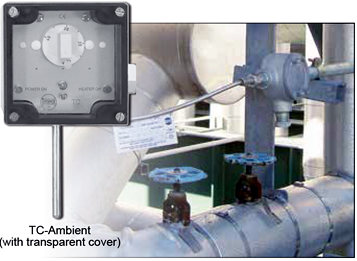

Thermon TC Ambient Thermostat with transparent coverThe TC-Ambient thermostat is designed to provide ambient sensing control of electric heat tracing circuits for freeze protection of piping and vessels. This adjustable thermostat can be used to control a single heating circuit or as pilot control of a contactor switching multiple heat tracing circuits.

Indicating lamps for power-on and heater-on are visible through a transparent cover. A rugged nonmetallic enclosure, suitable for harsh industrial environments, provides watertight and dusttight protection (per IP65) to the thermostat switch. External hardware is stainless steel.

The TC-Ambient thermostat meets requirements for use in nonhazardous locations.

Ratings

  • Thermon TC Ambient Thermostat - DimensionsVoltage rating: 400 Vac
  • Switch rating:
    230 Vac | 16 A (Ohmic, NC contact)
    400 Vac | 10 A (Ohmic, NC contact)
  • Operating ambient temperature: -30° to +55° C
  • Switch type: SPDT
  • Voltage rating: 230 Vac nominal up to 253 Vac¹
  • Switch rating: 25 A (Ohmic, NC contact)
  • Switch type: Controller
  • Electrical connection¹: Terminal Block²
  • Adjustable control range: 0°C to 40°C
  • Maximum control differential: ±4°C
  • Maximum bulb exposure temperature: 130°C
  • Bulb dimensions: 10 x 120 mm
  • Bulb material: stainless steel
  • Approximate weight: 1.5 kg

Notes:

¹The TC-Ambient utilises two M25 entries and is shipped with an M25-PWR-IND power gland and an M25-B-IND blind plug that can be replaced with an M25 gland to permit power or heating cable connection. Refer to Form TEP0057U for additional accessories.
²

Terminal block consists of four 4-mm2 line/load terminals and one 4-mm2 PE terminal.
