Applications

• The LEISTER Blower Robust is suitable for building into machines, installations and appliances and is designed for continuous operation.
• It is suitable for delivering air, non combustible, non corrosive and nonexplosive gases.
• Air supply for LEISTER Hot Air tools, for intake air supply and for cooling.
• Ventilation of tanks, aquariums and different applications for textile machines.
• Drawing off of welding gases and fumes.
• Transfer of granular and loose materials.
• Vacuuming screen printing machines and air tables.

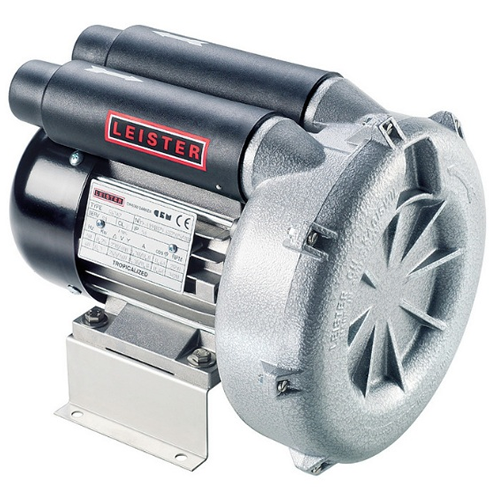

Description of tool

1. Air outlet Ø 38
2. Air intake Ø38
3. Motor
4. Connection box
5. Connection box lid
6. Installation stand
7. Fan housing


Operating Instructions

Circuit diagram in connection box lid (5)

• The blower should only take in air at < 60°C.
• For use in a dusty environment, a LEISTER stainless steel filter should be fitted onto the blower airintake (2).
• The appropriate connections should be made inthe connection box (4)depending on the voltage.
• The blower should be connected by an electricengineer. Pay attention to the direction of rotation!

• Danger! When opening up the tool live connections are exposed.
  Therefore, before opening it, disconnect all poles from the mains.
• The voltage rating stated on the tool should correspond to the mains voltage.
• The tool must be grounded with the protective conductor.
• Use thermal overload protection switch.
• Pay attention to the direction of rotation.
• Protect tool from damp and wet.

Installation

• The ROBUST blower should be fixed by using four M6 screws on the installation stand (6)
• Protect the blower from vibration and shock.
• The blower can be installed horizontally or vertically.

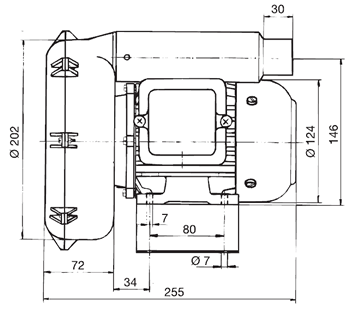

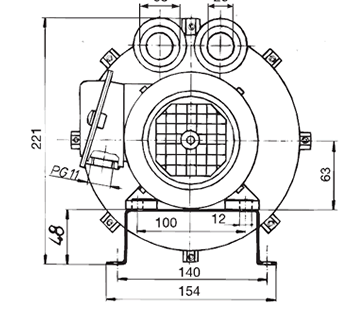

• Installation dimensions in mm

With the appropriate accessories it can supply several Leister air heaters in parallel.
